OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine

Brand Name : QIANHE

Model Number : SF800-I

Place of Origin : Hangzhou China

MOQ : 1 set

Price : US$500-US$1000per set

Payment Terms : T/T, Western Union ,Paypal

Supply Ability : 500 set per month

Delivery Time : 3-15 working days

Packaging Details : Carton with foam

Power supply : DC36-48V

Voltage : 100W

Mounting hole : Ф 16mm

Wire Speed : 20m/s

Feature : Feed wire Automaticly

Tension Range : 2-800g

Wire Range : 0.02-0.04mm

MOQ : 1set

Delivery : By Air

Application : Outer rotor winding machine

Contact Now

Fast Response ,On-Line Tension Display Servo Tensioner For Outer Rotor Winding Machine



The SF800-I Series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 20 meters per socond.



Details :

  • Its high-speed/high torque DC servo motor and built-In Adaptive Speed Control Software provides fast response to rapid changes in coil winding speed and a wider tension range for high-speed precision winding.
  • It also features a large screen HD LCD panel for multiple data setting & display.
  • Standard configurations for this series include a built -in tension measurement system, two stage tension setting & wire breaking detection.The series operates with DC36V.


Advantages :

  • Precise, stable and consistent tension for hi -speed precision winding
  • Two stage tensicn setting
  • Clear multiple data display, real time tension, real-time wi9re speed and real time wire length
  • Tension range preset function (upper & lower tension limit) with alarm output
  • Real time communication with host computer. Collect & record winding data (tension diagram, wire length, wire travel speed etc.,)


Requirements

Power supply : DC 36V







Supply Ability



Supply Ability: 1000 Set/Sets per Month



Packaging & Delivery


Packaging Details:Coil Winding Tensioner Servo Wire Tensioner for Fine Copper Wire with package by       foam and carton box .



Port:                      Hangzhou /Shanghai /Ningbo



Lead Time :          1-5 working days







Specification :



Servo Tensioner
Part.No Tensioner model Tension Arm Tension Spring Tension Range (gf) Wire Range (mm) Tension Arm head structure Tension Arm size
1 SF800-Ⅰ SF-1# T1,T2,T3 2-50 0.02-0.1 Ceramic Eylet/Ruby ,Wire Roller(S) Φ0.8*Φ2*150
2 SF800-Ⅰ SF-2# T2,T4,T5 5-100 0.03-0.15 Ruby / Wire Roller(M) Φ1.5*Φ2*200
3 SF800-Ⅰ SF-3# T5,T8,T9 30-450

0.06-0.28

 Ruby / Ceramic Pulley(005)/Wire Roller(M) Φ1.5*Φ4*200
4 SF800-Ⅰ SF-4# T7,T9,T10 100-800 0.12-0.4 Ruby / Ceramic Pulley(005)/Wire Roller(L) Φ2.0*Φ4.0*150



Main parameters



Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
SF800-I DC36V 100W / Ф 16mm 1.8kg 288*164*72.5(mm)



Dimensional drawing

OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine

Product Structure

OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine

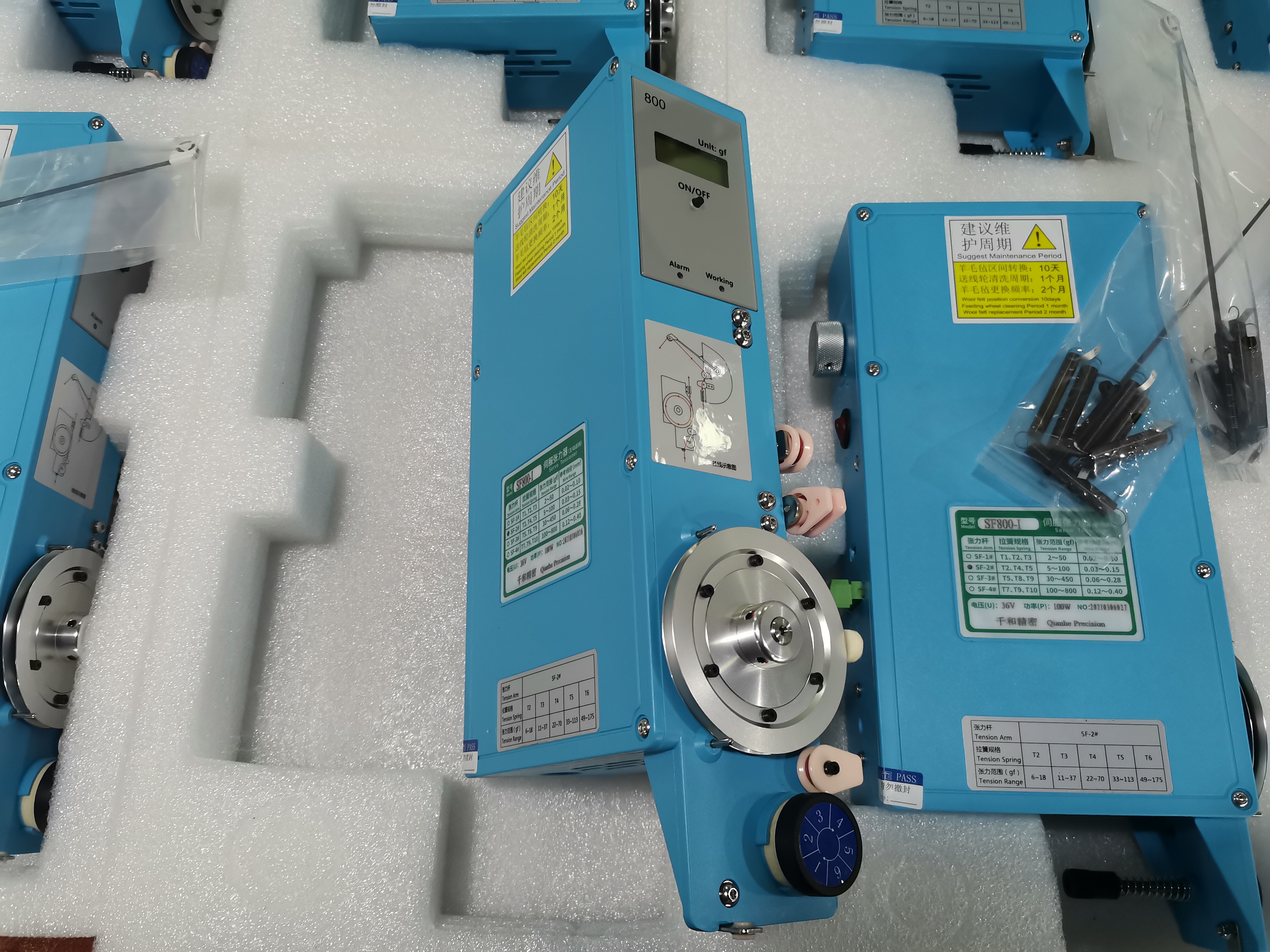

Picture Display:






OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine



OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine



OnLine Tension Display Servo Tensioner Fast Response For Outer Rotor Winding Machine
