Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length

Name: Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Brand: QINAHE
Price: 12.5 USD

Buy cheap Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length product

Brand Name : QINAHE

Model Number : TC1207-3014-3510

Place of Origin : Hangzhou China

MOQ : 20 pcs

Price : US$12.5-US$25

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 3-10 working days

Packaging Details : Carton with box/foam

Materials : Ceramic

Color : White

Hardness : 1500HV

Flexural strength : 1700N/mm²

Contact Now

Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length

Coil winding nozzle ,tungsten carbide nozzle ,Ruby Nozzle ,Ceramic Nozzle China
manufacturer.

This Nozzle made from NMparticles of zirconia material ,with hardness 1500HV, flexural

strength 1700N/mm² ,using professional equipment for precision grinding ,The curvature

radius of scientific computing for both the inlet and outlet ,ensure the safety smoothly for

the wire ,effective ensure the enameled wire paint from damage .

Specification and size list :

Part.No.	Model	Specifications(mm)
Part.No.	Model	ФD	ФD1	Фd1	Фd2	L1	L
1	TC1003-3008-3006	3	0.8	0.3	1.0	6	30
2	TC1003-3010-3510	3	1.0	0.3	1.0	10	35
3	TC1005-3010-3008	3	1.0	0.5	1.0	8	30
4	TC1005-3010-3510	3	1.0	0.5	1.0	10	35
5	TC1207-3014-3008	3	1.4	0.7	1.2	8	30
6	TC1210-3020-3010	3	2.0	1.0	1.2	10	30

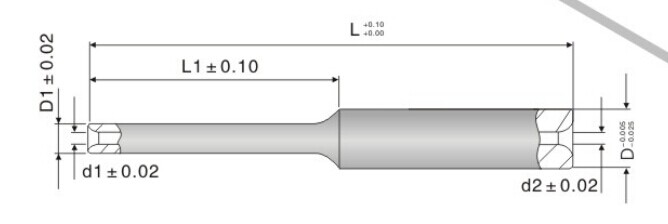

Size Drawings:

Example :TC0303-3010-3008

TC (Ceramic Tungsten Alloy )
d2 =0.3 mm : Inner bore
d1 =0.3 mm : Outlet bore
D  =3.0 mm : Diameter
D1 =1.0 mm : Diameter
L  =30  mm : The total length
L1 =8.0 mm : Length

Pictures Show :

Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
   Nozzle inner bore
