Ceramic / Tungsten Carbide Coil Winding Nozzle , White Wire Guide Tube

Name: Ceramic Tungsten Carbide Coil Winding Nozzle White Wire Guide Tube
Brand: QINAHE
Price: 12.5 USD

Buy cheap Ceramic / Tungsten Carbide Coil Winding Nozzle , White Wire Guide Tube product

Brand Name : QINAHE

Model Number : TC1210-3020-3010

Place of Origin : Hangzhou China

MOQ : 20 pcs

Price : US$12.5-US$25

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 3-10 working days

Packaging Details : Carton with box/foam

Materials : Ceramic

Color : White

Hardness : 1500HV

Flexural strength : 1700N/mm²

Contact Now

Ceramic / Tungsten Carbide Coil Winding Nozzle , White Wire Guide Tube

Coil winding nozzle ,tungsten carbide nozzle ,Ruby Nozzle ,Ceramic Nozzle China
manufacturer.

This Nozzle made from NMparticles of zirconia material ,with hardness 1500HV, flexural strength
1700N/mm² ,using professional equipment for precision grinding ,The curvature radius of scientific
computing for both the inlet and outlet ,ensure the safety smoothly for the wire ,effective ensure the enameled wire paint from damage .

Specification and size list :

Part.No.	Model	Specifications(mm)
Part.No.	Model	ФD	ФD1	Фd1	Фd2	L1	L
1	TC1003-3008-3006	3	0.8	0.3	1.0	6	30
2	TC1003-3010-3510	3	1.0	0.3	1.0	10	35
3	TC1005-3010-3008	3	1.0	0.5	1.0	8	30
4	TC1005-3010-3510	3	1.0	0.5	1.0	10	35
5	TC1207-3014-3008	3	1.4	0.7	1.2	8	30
6	TC1210-3020-3010	3	2.0	1.0	1.2	10	30

Size Drawings:

Example :TC0303-3010-3008

TC (Ceramic Tungsten Alloy )
d2 =0.3 mm : Inner bore
d1 =0.3 mm : Outlet bore
D  =3.0 mm : Diameter
D1 =1.0 mm : Diameter
L  =30  mm : The total length
L1 =8.0 mm : Length

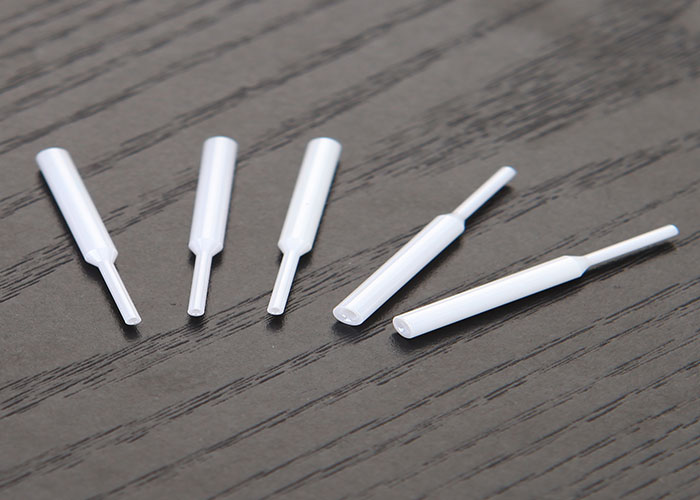

Pictures Show :
Ceramic / Tungsten Carbide Coil Winding Nozzle , White Wire Guide Tube
   Ceramic Nozzle

Ceramic Nozzle

   Nozzle inner package
