Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

Name: Black Handheld Mechanical Tension Meter For Fiber Wire Yarns
Brand: QIANHE
Price: 550 USD

Buy cheap Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns product

Brand Name : QIANHE

Model Number : QH-TM-10

Place of Origin : HANGZHOU CHINA

MOQ : 1 piece

Price : US$550-US$1650

Payment Terms : T/T, Western Union

Supply Ability : 200 pcs per month

Delivery Time : 3-7 work days

Packaging Details : carton with box

Name : Tension meter

Mode : Mechanical

Materials : ABS resin

Color : black matte

Package size : 210mm × 150mm × 160mm

Product weight : 0.35kg

Contact Now

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

Mechanical Tension Meter

Hangzhou Qianhe’s Tension Meter is for measuring tension of fiber wire and motor copper

This Tension Meter are for accurately measuring the running line tensions on all kinds of wires

(cooper, metal, aluminum, plastic and motor copper wire etc), Yarns and fibers. With precise jeweled

(Ruby bushing) movement, Precision ball bearing mounted rollers and built-in damper, Qianhe tension meter

completely eliminate the vibration and resistance caused by instrument

itself, to provide reliable, accurate and steady tension reading as tension fluctuate.

Detailed Product Description:

For Fiber wire and copper wire .
Test range from 0-3kg
Minimum degree 1.0gram to 50 gram

Product Features:

High precision ,long service life
Easy to using,provide reliable, accurate and steady tension reading
Beautiful appearance and packing

Specification :

Model	Tension Scope(gf)	The Minimum Degree (gf)
QH-TM-05	0-50	1.0
QH-TM-10	0-100	2.0
QH-TM-50	0-500	10.0
QH-TM-100	0-100	20.0
QH-TM-200	0-2000	40.0
QH-TM-300	0-3000	50.0

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

5	Measuring range:0-50g,Minimum scale : 1g
10	Measuring range:0-100g,Minimum scale : 2g
50	Measuring range:0-500g,Minimum scale : 10g
100	Measuring range:0-1000g,Minimum scale:20g
200	Measuring range:0-2000g,Minimum scale:40g
300	Measuring range:0-3000g,Minimum scale:50g

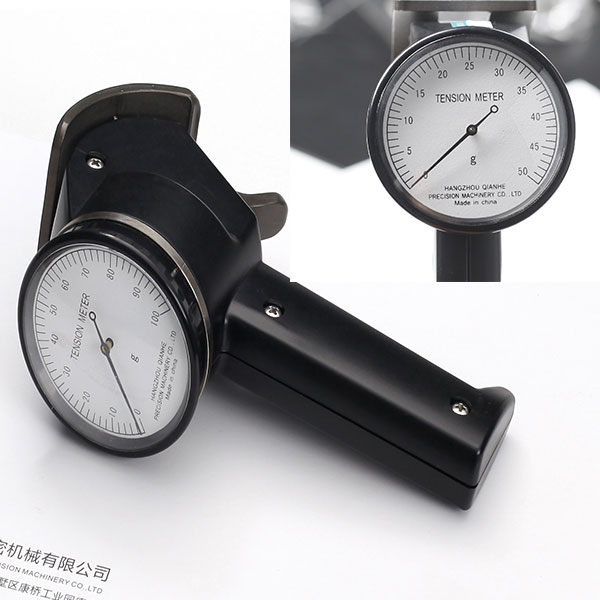

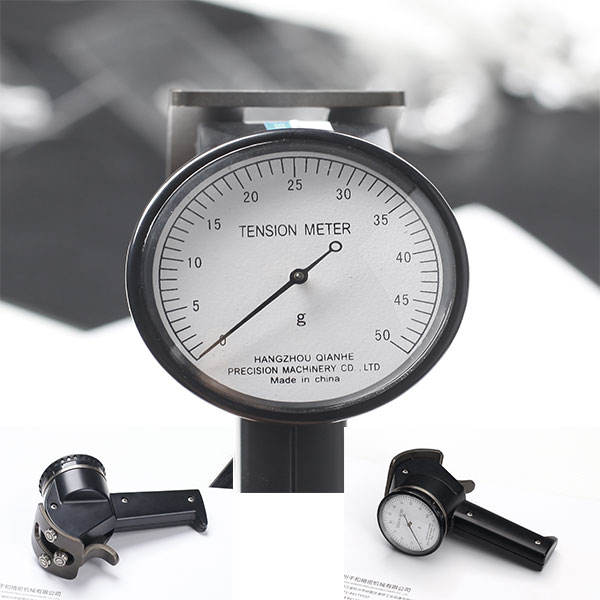

Picture show :

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

QH-TM-10

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

QH-TM-05

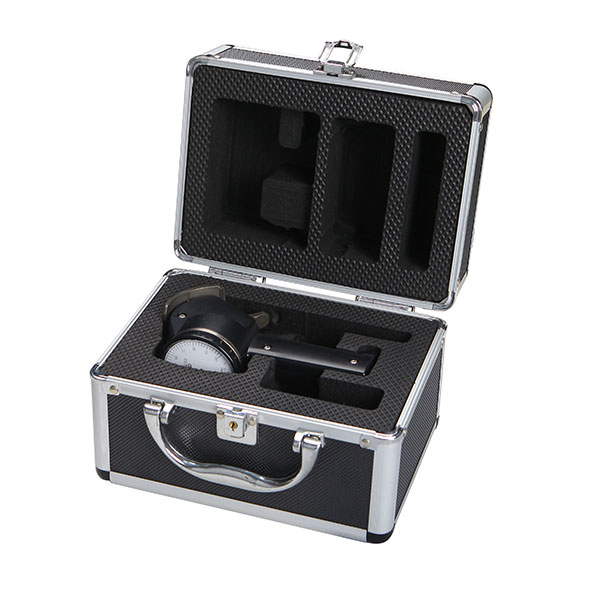

Inner package:

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

Out Dimensions :

Black Hand-held Mechanical Tension Meter For Fiber Wire / Yarns

Measurement methods :
