Diamond Blades Wire Stripping Tools Enameled Copper Wire Stipper

Name: Diamond Blades Wire Stripping Tools Enameled Copper Wire Stipper
Brand: QIANHE
Price: 580 USD

Buy cheap Diamond Blades Wire Stripping Tools Enameled Copper Wire Stipper product

Brand Name : QIANHE

Model Number : PPKL

Certification : 3446673

Place of Origin : Hangzhou China

MOQ : 1 set

Price : US$580-US$1350

Payment Terms : T/T, Western Union

Supply Ability : 1000 set per month

Delivery Time : 3-7work days

Packaging Details : Carton with box/foam

Material : artificial diamond

Application : Enameled copper wire

Revolution : 5000rpm/min

Suit : CNC Coil Winding Machine

Wire Diameter : 1.8-2.8mm

Installtion Size : Ф7*13.0

Outer diameter*Length : Ф31(max)*65

Model : PPKL

Contact Now

Wire Stripper

Stripping of Enameled copper wire

The Wire Stripper blades material is artificial diamond with high wear resistance and is adjustable to

ensurethe consistency and uniformity of stripping.

A thin layer of enamel can be removed from a magnet wire without damaging the copper.

The result is a neatly stripped copper wire. Turn off the machine and the stripper will stop

automatically ready for the next working.

The Principle of the Wire Stripper

It works at low voltage (long durability ,electrically harmless ) and is connected to the CNC Automatic

Coil Winding Machine or other machine which can offer 5000rpm/min.Three pieces of hardened

diamond material blades of the stripper from a funnel ,these will close the wire from the largest to the

smallest diameter,

as the rotary speed increases the magnet wire is feed between the

blades to the required depth ,the start button is pushed and the

stripper slowly drawn away from the wire .

Specification:

Model	Wire Diameter	Installtion Size	Outer diameter*Length
Model	(mm)	Installtion Size	(mm)
PPKSS	0.15-0.7	Ф7*13.0	Ф31(max)*65
PPKS	0.7-1.2	Ф7*13.0	Ф31(max)*65
PPKM	1.2-1.8	Ф7*13.0	Ф31(max)*65
PPKL	1.8-2.8	Ф7*13.0	Ф31(max)*65

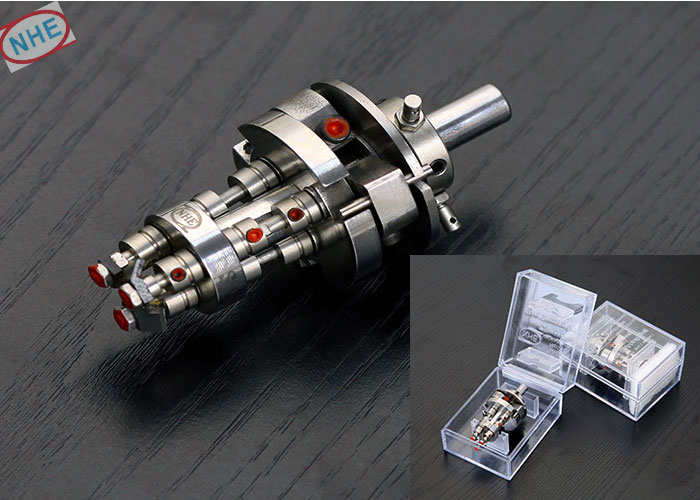

Picture Show :

Diamond Blades Wire Stripping Tools Enameled Copper Wire Stipper

PPKL
