Winding Nozzle for manufacture of coils ,motor transformer,relay in winding machine
Tungsten Carbide Nozzle /Coil Winding Nozzle

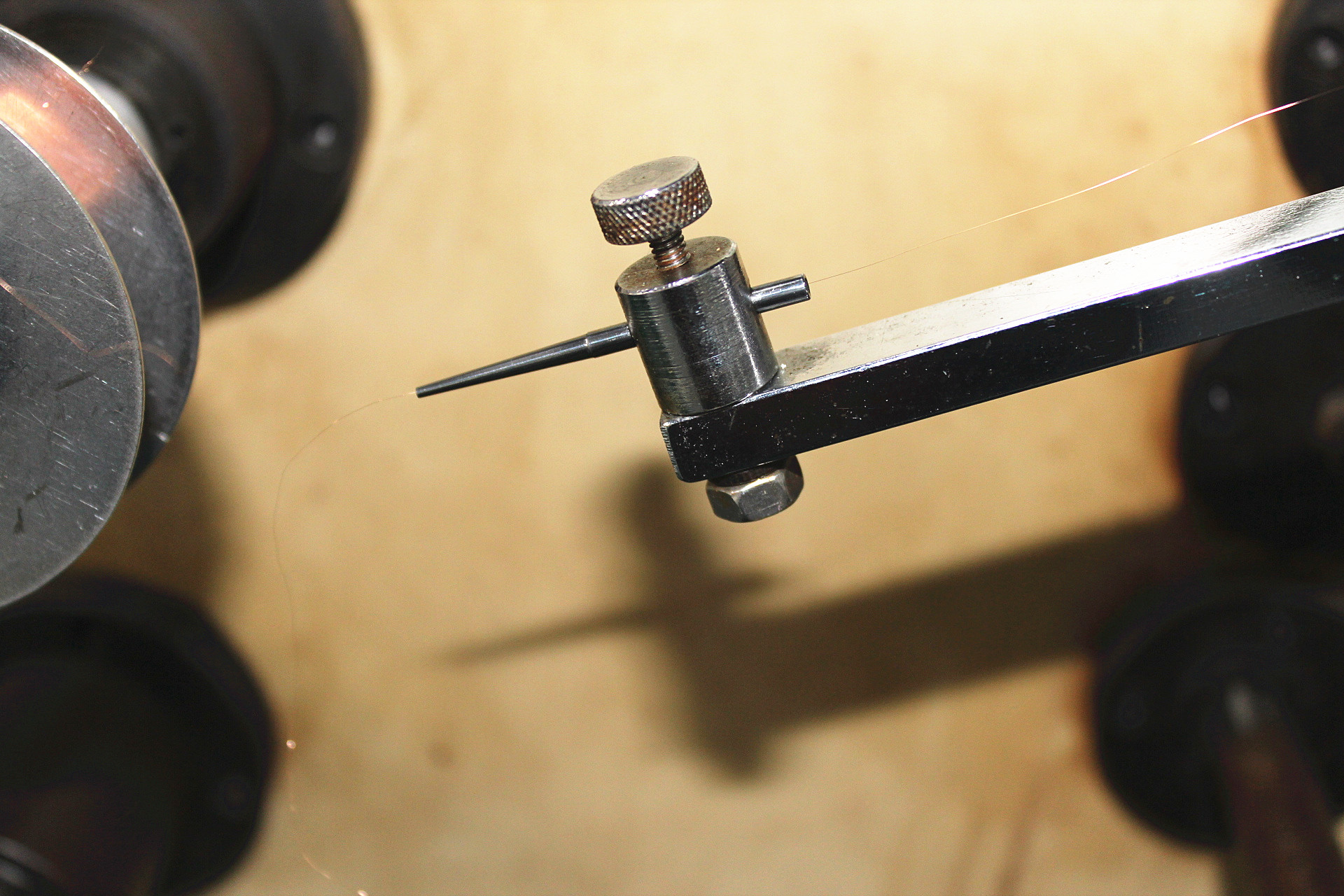

The tungsten carbide nozzle used in coil winding machine to guide the wire to wind on the bobbin ,
on the pins and etc .for the manufacture of coils ,motor transformers ,relays ,contactor ,inducance
and sensors in automotive ,telecoms ,electric and electronic application .
Description :
The Carbide Winding nozzle is precisely processed from ultrafine particle tungsten carbide ,the hardness is up to above HRA90 degree ,and the bending strength is more than 2300N/mm ,QIANHE uses special equipment for precision abrasive machining and precision grinding treatment of inner hole to make the roughness reach up to Ra0.1,and the roughness of R at both ends are up to Ra0.025,The curvature radiuse of the inlet and outlet two ends are scientifically desighed to ensure that the wires pass smoothly and naturally .There is no step inside hole of the wire guide nozzle ,thus improving the phenomenon of easy bending and blocking .
Aplication :
The Tungsten Carbide Nozzle is mainly used on full-automatic winding machine for high-speed
winding of fine coils and super fine enameled wires
Key advantages of Tungsten Carbide Nozzle :
1. High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness
Value: 1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless
steel for structural supports, not wear-bearing.
2. Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension.
The wireguiding surfaces are mirror finished by diamond lapping to a surface roughness of
2 4 micro inches Ra or better, material permit.
3. Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible
with respect to the nozzle locating. In plain terms, the wire should exit from the nozzle
concentric to the locating, To within 0.02 mm, with or without load. A geometric
Characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one
coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement,
shown at upper right.
Specification and description:
| Part.No. | Model | Specifications(mm) |
| L | L1 | D | D1 | d1 | d2 |
| 1 | W0202-2005-1505 | 15 | 5 | 2.0 | 0.5 | 0.2 | 0.2 |
| 2 | W0202-2000-3300 | 33 | * | 2.0 | * | 0.2 | 0.2 |
| 3 | W0202-3010-3015 | 30 | 15 | 3.0 | 1.0 | 0.2 | 0.2 |
| 4 | W0202-3006-3010 | 30 | 10 | 3.0 | 0.6 | 0.2 | 0.2 |
| 5 | W0202-3015-3015 | 30 | 15 | 3.0 | 1.5 | 0.2 | 0.2 |
| 6 | W0202-3007-3508 | 35 | 8 | 3.0 | 0.7 | 0.2 | 0.2 |
| 7 | W0303-3008-3012P | 30 | 12 | 3.0 | 0.8 | 0.3 | 0.3 |
| 8 | W0303-3012-3519 | 35 | 19 | 3.0 | 1.2 | 0.3 | 0.3 |
| 9 | W0303-3008-4506 | 46 | 6 | 3.0 | 0.8 | 0.3 | 0.3 |
| 10 | W0303-3020-3515 | 35 | 15 | 3.0 | 2.0 | 0.3 | 0.3 |
| 11 | W0303-0800-3500 | 35 | * | 0.8 | * | 0.3 | 0.3 |
| 12 | W0303-3018-4018 | 40 | 18 | 3.0 | 1.8 | 0.3 | 0.3 |
| 13 | W0404-3010-3009 | 30 | 9 | 3.0 | 1.0 | 0.4 | 0.4 |
| 14 | W0404-3007-4528 | 45 | 28 | 3.0 | 0.7 | 0.4 | 0.4 |
| 15 | W0505-3012-4506T | 45 | 6 | 3.0 | 1.2 | 0.5 | 0.5 |
| 16 | W0606-3012-3520 | 35 | 20 | 3.0 | 1.2 | 0.6 | 0.6 |
| 17 | W0606-3016-4010T | 40 | 10 | 3.0 | 1.6 | 0.6 | 0.6 |
| 18 | W0808-3018-3518 | 35 | 18 | 3.0 | 1.8 | 0.8 | 0.8 |
| 19 | W0808-3018-3010 | 30 | 10 | 3.0 | 1.8 | 0.8 | 0.8 |
| 20 | W1212-3022-3010 | 30 | 10 | 3.0 | 2.2 | 1.2 | 1.2 |
All size can be customized according to customer requirements
Nozzle Drawings:
The the measurements drawing as above please confirm your nozzles size according
to your winding machine and coil products.

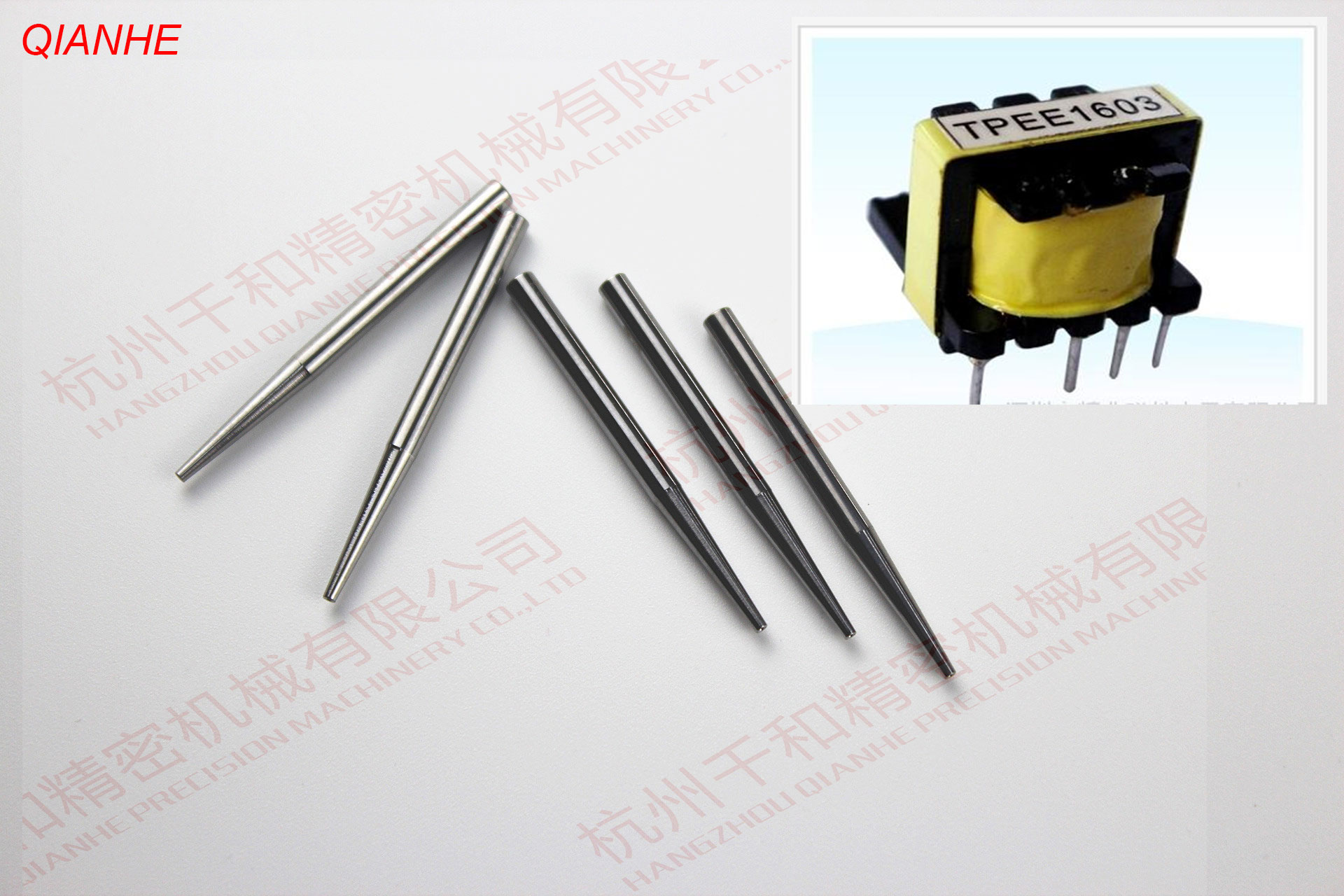

Picture show :
Inner packing :Plastic Box Inner packing :Paper box Outer packing :Carton
