Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding
We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil
winding nozzle for Nittoku coil winding machine, CNC Automatic coil winding machine
and other brand coil winding machines,.
There is description and features about the Tungsten Carbide Nozzle as following:
Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super
hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree
reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror
surface treatment to ensure enameled wire makes no scrape. High hardness, resistance
to flexure, block and impact .
Key advantages of Tungsten Carbide Nozzle :
- High Wear Resistance
- Scratch-Proofing
- Straightness and Stiffness
- Precise Exit Radii
Specification and description:
| Part.No. | Model | Specifications(mm) |
| L | L1 | D | D1 | d1 | d2 |
| 1 | W0202-2005-1505 | 15 | 5 | 2.0 | 0.5 | 0.2 | 0.2 |
| 2 | W0202-2000-3300 | 33 | * | 2.0 | * | 0.2 | 0.2 |
| 3 | W0202-3010-3015 | 30 | 15 | 3.0 | 1.0 | 0.2 | 0.2 |
| 4 | W0202-3006-3010 | 30 | 10 | 3.0 | 0.6 | 0.2 | 0.2 |
| 5 | W0202-3015-3015 | 30 | 15 | 3.0 | 1.5 | 0.2 | 0.2 |
| 6 | W0202-3007-3508 | 35 | 8 | 3.0 | 0.7 | 0.2 | 0.2 |
| 7 | W0303-3008-3012P | 30 | 12 | 3.0 | 0.8 | 0.3 | 0.3 |
| 8 | W0303-3012-3519 | 35 | 19 | 3.0 | 1.2 | 0.3 | 0.3 |
| 9 | W0303-3008-4506 | 46 | 6 | 3.0 | 0.8 | 0.3 | 0.3 |
| 10 | W0303-3020-3515 | 35 | 15 | 3.0 | 2.0 | 0.3 | 0.3 |
| 11 | W0303-0800-3500 | 35 | * | 0.8 | * | 0.3 | 0.3 |
| 12 | W0303-3018-4018 | 40 | 18 | 3.0 | 1.8 | 0.3 | 0.3 |
| 13 | W0404-3010-3009 | 30 | 9 | 3.0 | 1.0 | 0.4 | 0.4 |
| 14 | W0404-3007-4528 | 45 | 28 | 3.0 | 0.7 | 0.4 | 0.4 |
| 15 | W0505-3012-4506T | 45 | 6 | 3.0 | 1.2 | 0.5 | 0.5 |
| 16 | W0606-3012-3520 | 35 | 20 | 3.0 | 1.2 | 0.6 | 0.6 |
| 17 | W0606-3016-4010T | 40 | 10 | 3.0 | 1.6 | 0.6 | 0.6 |
| 18 | W0808-3018-3518 | 35 | 18 | 3.0 | 1.8 | 0.8 | 0.8 |
| 19 | W0808-3018-3010 | 30 | 10 | 3.0 | 1.8 | 0.8 | 0.8 |
| 20 | W1212-3022-3010 | 30 | 10 | 3.0 | 2.2 | 1.2 | 1.2 |
All size can be customized according to customer requirements
The the measurements drawing as follow please confirm your nozzles size according
to your winding machine and coil products.
Picture show :

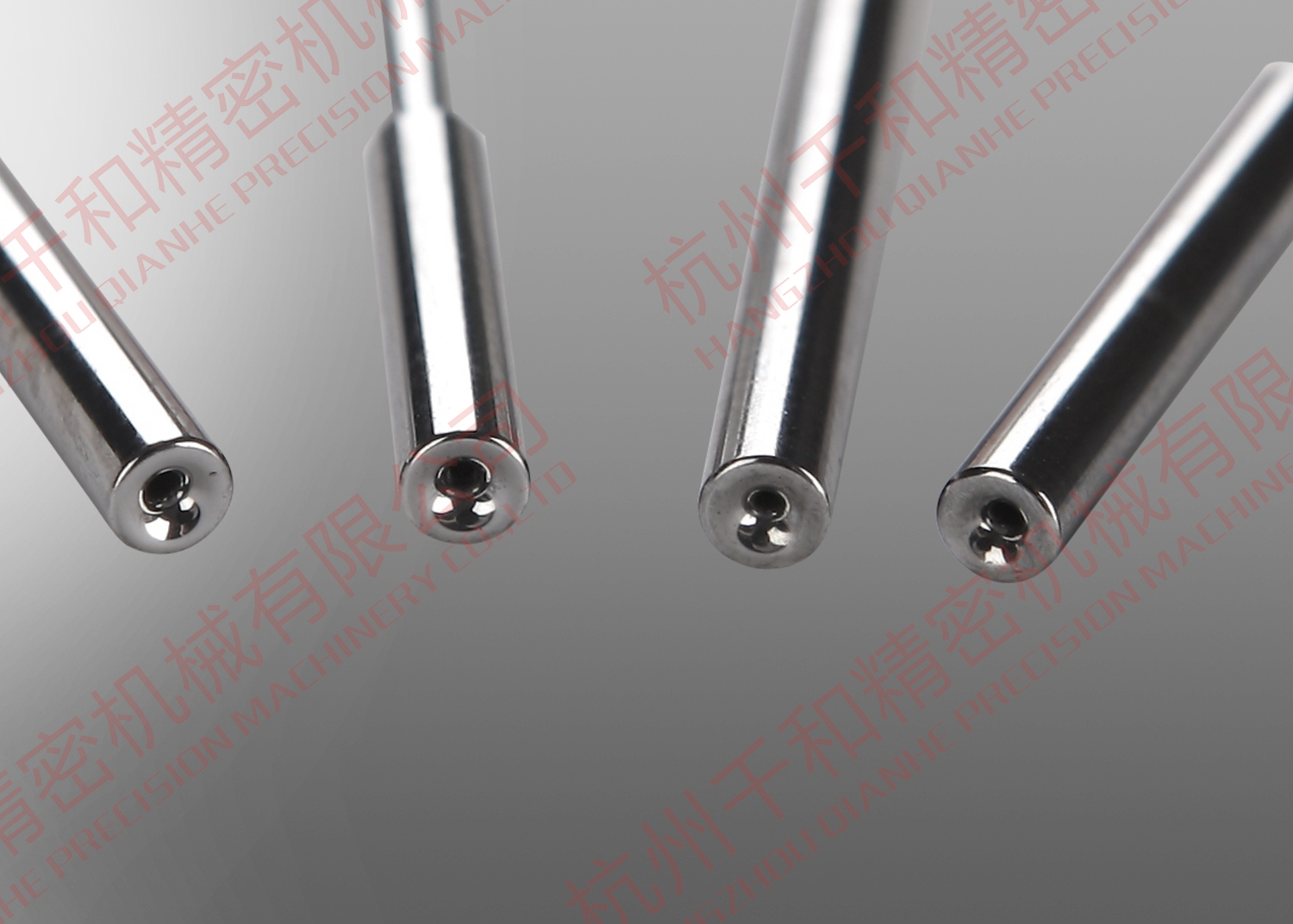

Tungsten Carbide Coil Winding Nozzle
Tungsten Carbide Nozzle
Nozzle inner bore with grinding effect

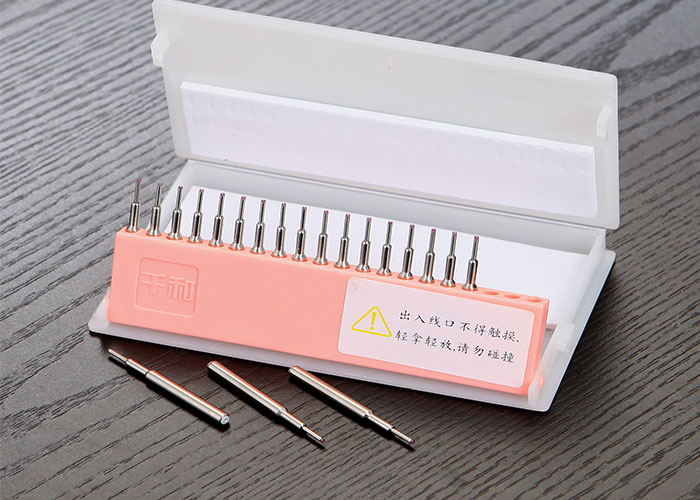

Coil Winding Nozzle Inner Package
