Tungsten Carbide Nozzle for motor coil winding Coil Winding Nozzle - Tungsten Carbide
Coil Winding Nozzle - Tungsten Carbide
The tungsten carbide nozzle used in coil winding machine to guide the wire to wind on the bobbin ,
on the pins and etc .for the manufacture of coils ,motor transformers ,relays ,contactor ,inducance
and sensors in automotive ,telecoms ,electric and electronic application .
Description :
The Carbide Winding nozzle is precisely processed from ultrafine particle tungsten carbide ,the hardness is up to above HRA90 degree ,and the bending strength is more than 2300N/mm ,QIANHE uses special equipment for precision abrasive machining and precision grinding treatment of inner hole to make the roughness reach up to Ra0.1,and the roughness of R at both ends are up to Ra0.025,The curvature radiuse of the inlet and outlet two ends are scientifically desighed to ensure that the wires pass smoothly and naturally .There is no step inside hole of the wire guide nozzle ,thus improving the phenomenon of easy bending and blocking .
Aplication :
The Tungsten Carbide Nozzle is mainly used on full-automatic winding machine for high-speed
winding of fine coils and super fine enameled wires
Our wire guide nozzles Tungsten Carbide offer the following advantages:
- Thoroughly mirror finished wire entrance, exit and bore surfaces
- Superior rigidity
- Capable of being fabricated to complex geometries
- Concentricity held to within 0.01 mm
Specification and description:
The measurements drawing as follow please confirm your nozzles size according
to your winding machine and coil products.
]]
| Part.No. | Model | Specifications(mm) |
| L | L1 | D | D1 | d1 | d2 |
| 1 | W0202-2005-1505 | 15 | 5 | 2.0 | 0.5 | 0.2 | 0.2 |
| 2 | W0202-2000-3300 | 33 | * | 2.0 | * | 0.2 | 0.2 |
| 3 | W0202-3010-3015 | 30 | 15 | 3.0 | 1.0 | 0.2 | 0.2 |
| 4 | W0202-3006-3010 | 30 | 10 | 3.0 | 0.6 | 0.2 | 0.2 |
| 5 | W0202-3015-3015 | 30 | 15 | 3.0 | 1.5 | 0.2 | 0.2 |
| 6 | W0202-3007-3508 | 35 | 8 | 3.0 | 0.7 | 0.2 | 0.2 |
| 7 | W0303-3008-3012P | 30 | 12 | 3.0 | 0.8 | 0.3 | 0.3 |
| 8 | W0303-3012-3519 | 35 | 19 | 3.0 | 1.2 | 0.3 | 0.3 |
| 9 | W0303-3008-4506 | 46 | 6 | 3.0 | 0.8 | 0.3 | 0.3 |
| 10 | W0303-3020-3515 | 35 | 15 | 3.0 | 2.0 | 0.3 | 0.3 |
| 11 | W0303-0800-3500 | 35 | * | 0.8 | * | 0.3 | 0.3 |
| 12 | W0303-3018-4018 | 40 | 18 | 3.0 | 1.8 | 0.3 | 0.3 |
| 13 | W0404-3010-3009 | 30 | 9 | 3.0 | 1.0 | 0.4 | 0.4 |
| 14 | W0404-3007-4528 | 45 | 28 | 3.0 | 0.7 | 0.4 | 0.4 |
| 15 | W0505-3012-4506T | 45 | 6 | 3.0 | 1.2 | 0.5 | 0.5 |
| 16 | W0606-3012-3520 | 35 | 20 | 3.0 | 1.2 | 0.6 | 0.6 |
| 17 | W0606-3016-4010T | 40 | 10 | 3.0 | 1.6 | 0.6 | 0.6 |
| 18 | W0808-3018-3518 | 35 | 18 | 3.0 | 1.8 | 0.8 | 0.8 |
| 19 | W0808-3018-3010 | 30 | 10 | 3.0 | 1.8 | 0.8 | 0.8 |
| 20 | W1212-3022-3010 | 30 | 10 | 3.0 | 2.2 | 1.2 | 1.2 |
More specifications can be make as your requirement.
Application: Applied for wire coil winding of various motors
Work Limit: d1=d2>0.2mm
D1>0.60mm

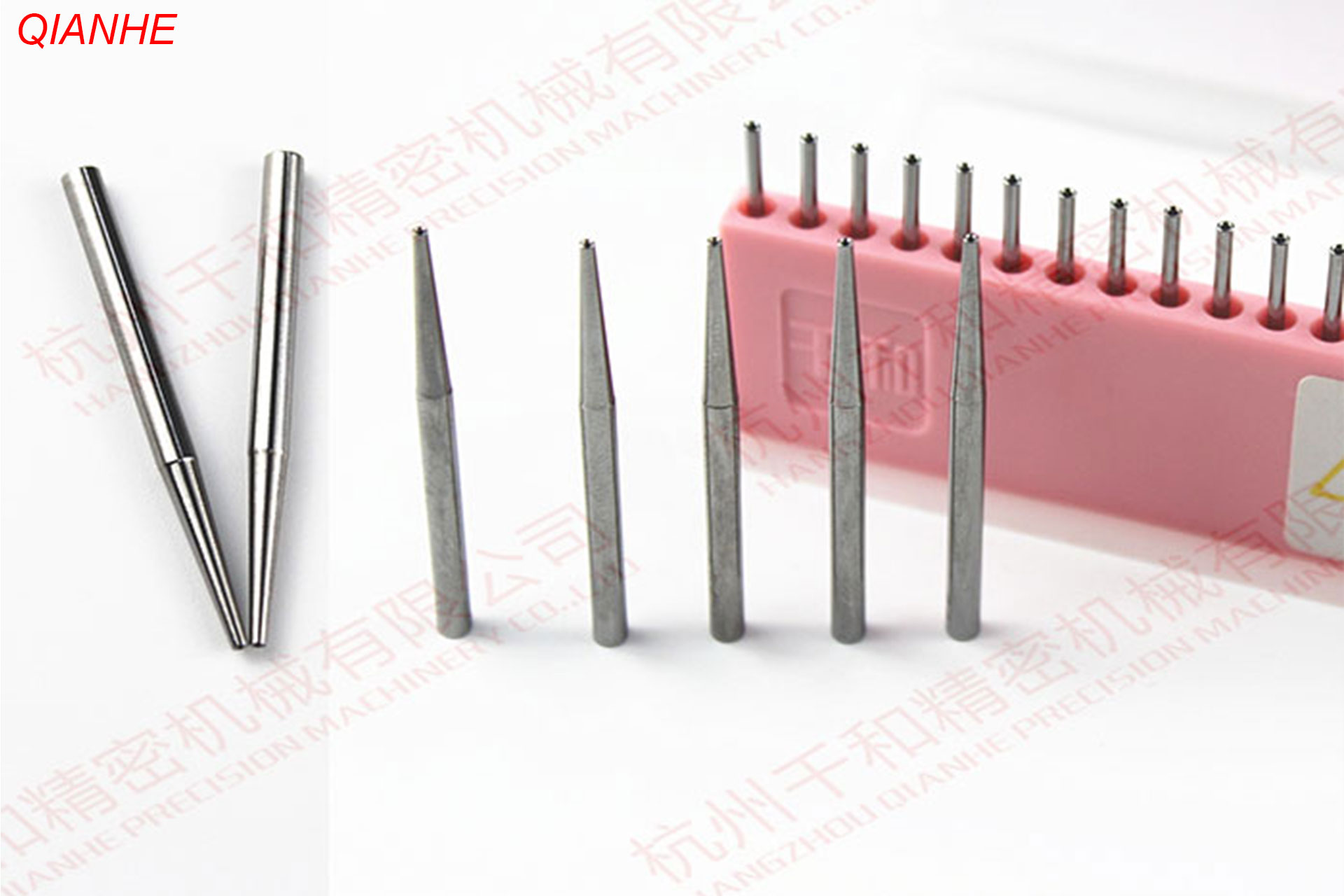

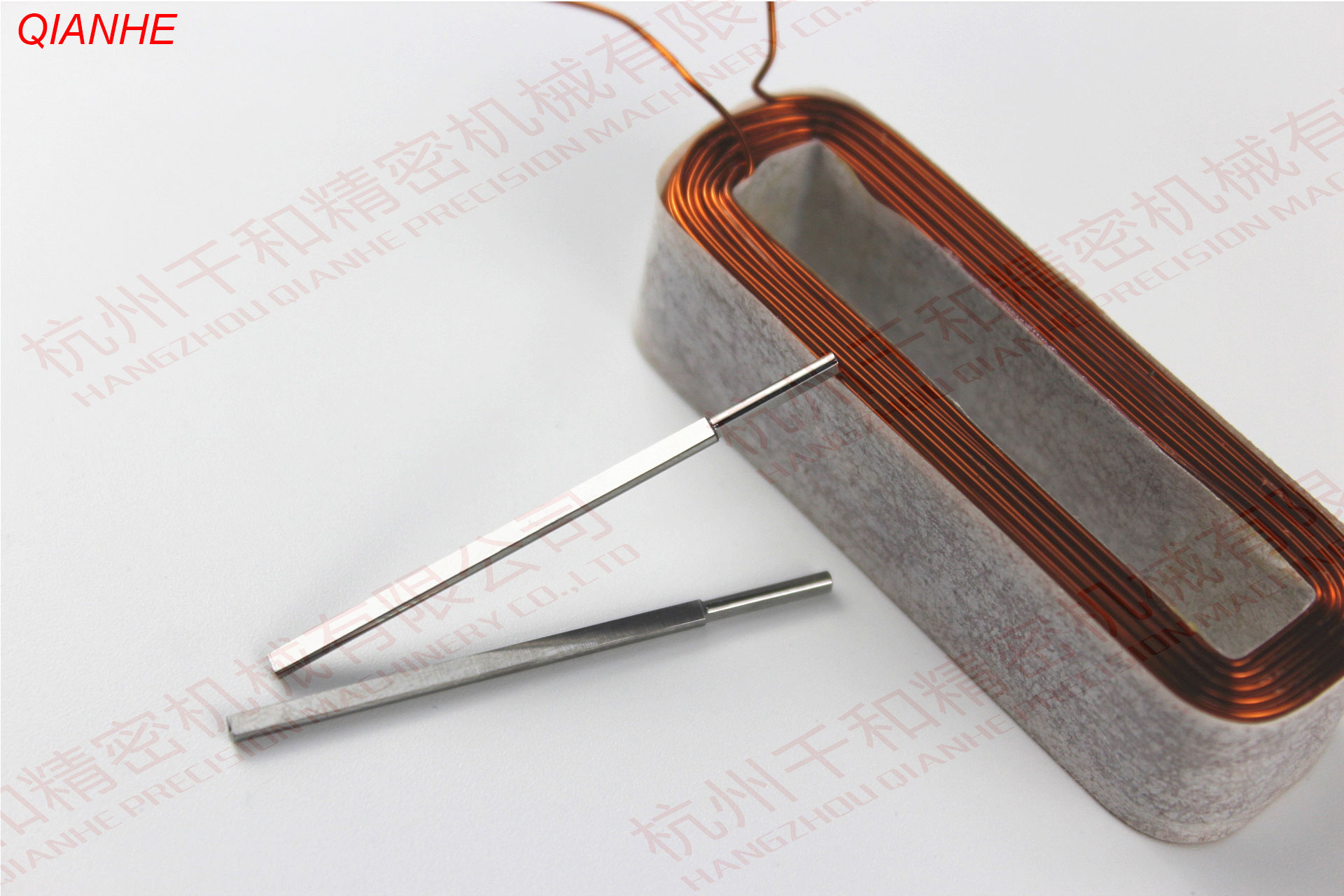

Picture show :

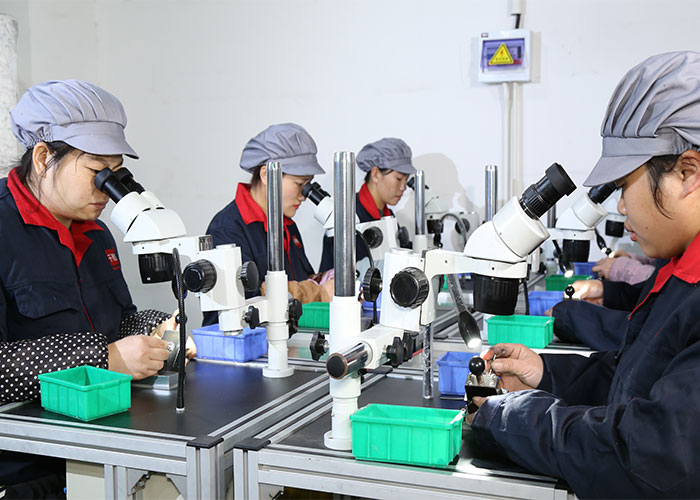

Nozzle Inspection
Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of
experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,
delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
customers are very happy to cooperate with us, because we can provide a more competitive
price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified
can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before
the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
