Solid Tungsten Carbide Nozzles Tungsten Carbide Winding Coil Nozzle

Name: Solid Tungsten Carbide Nozzles Tungsten Carbide Winding Coil Nozzle
Brand: QIANHE
Price: 5 USD

Buy cheap Solid Tungsten Carbide Nozzles Tungsten Carbide Winding Coil Nozzle product

Brand Name : QIANHE

Model Number : CW0202-3006-3007

Place of Origin : HANGZHOU CHINA

MOQ : 20 pcs

Price : US$5

Payment Terms : T/T, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 3-7 working days

Packaging Details : Carton with box /foam

Material : Tungsten Carbide Steel

Hardness : HRC90

Application : CNC Automatic Coil Winding Machine

Roughness of R Place : Ra0.025

Roughness of Bore : Ra0.1

Precision : High Precision

Function : Abrasion Resistance

Work Limit : d1>0.2mm D1>0.7mm

Contact Now

Solid Tungsten Carbide Nozzles Tungsten Carbide Winding Coil Nozzle

Description of tungsten carbide coil winding nozzle :

Tungsten carbide wire guide nozzles(Coil winding nozzles)used in coil winding machines

to guide the wire to wind on the bobbin, on pins and etc. for the manufacture of coils,

motors, transformers, relays, inductance and sensors in automotive, telecoms, electric

and electronic applications. And make the tungsten carbide blasting nozzles, tungsten

carbide spray nozzles by dimensions drawing.

Product Features:
The product is made prcciscly of hard alloy and cnjoy the hardness up to HRA90.

Two terminals and inner hole are all receive mirror surface treatment to ensure cnameled

wire makes no scrape.

The Merits of Solid Tungsten Carbide Nozzles

Our wire guide nozzles in Solid Tungsten Carbide offer the following advantages:

Thoroughly mirror finished wire entrance, exit and bore surfaces
Superior rigidity
Capable of being fabricated to complex geometries
Concentricity held to within 0.01 mm

Specification and description:

Part.No.	Model	Specifications(mm)
Part.No.	Model	L	L1	D	D1	d1	d2
1	W0202-2005-1505	15	5	2.0	0.5	0.2	0.2
2	W0202-2000-3300	33	*	2.0	*	0.2	0.2
3	W0202-3010-3015	30	15	3.0	1.0	0.2	0.2
4	W0202-3006-3010	30	10	3.0	0.6	0.2	0.2
5	W0202-3015-3015	30	15	3.0	1.5	0.2	0.2
6	W0202-3007-3508	35	8	3.0	0.7	0.2	0.2
7	W0303-3008-3012P	30	12	3.0	0.8	0.3	0.3
8	W0303-3012-3519	35	19	3.0	1.2	0.3	0.3
9	W0303-3008-4506	46	6	3.0	0.8	0.3	0.3
10	W0303-3020-3515	35	15	3.0	2.0	0.3	0.3
11	W0303-0800-3500	35	*	0.8	*	0.3	0.3
12	W0303-3018-4018	40	18	3.0	1.8	0.3	0.3
13	W0404-3010-3009	30	9	3.0	1.0	0.4	0.4
14	W0404-3007-4528	45	28	3.0	0.7	0.4	0.4
15	W0505-3012-4506T	45	6	3.0	1.2	0.5	0.5
16	W0606-3012-3520	35	20	3.0	1.2	0.6	0.6
17	W0606-3016-4010T	40	10	3.0	1.6	0.6	0.6
18	W0808-3018-3518	35	18	3.0	1.8	0.8	0.8
19	W0808-3018-3010	30	10	3.0	1.8	0.8	0.8
20	W1212-3022-3010	30	10	3.0	2.2	1.2	1.2

Above is just for example all size can be customized according to customer’s special dimensins drawing requirements .

The the measurements drawing as follow please confirm your nozzles size according

to your winding machine and coil products.

Picture show :

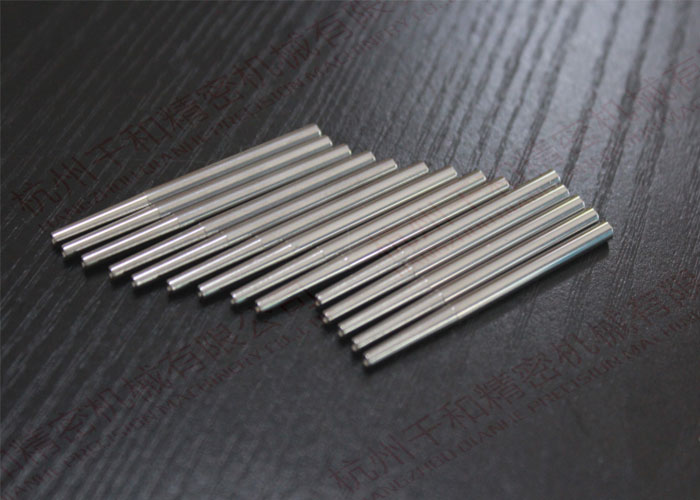

Coil Winding Nozzle

Solid Tungsten Carbide Nozzles Tungsten Carbide Winding Coil Nozzle

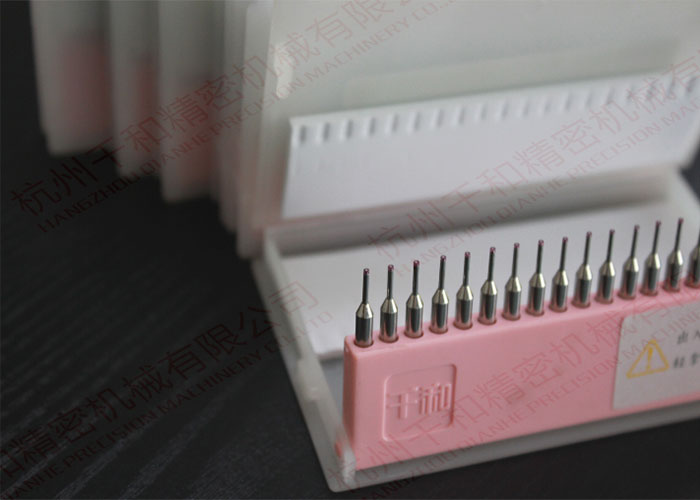

Coil winding Nozzle package
